Deployment Architecture

Welcome to the Harness Database DevOps Product Documentation. This guide will assist you in integrating database operations into your application deployment workflows. Our Database DevOps module enables you to manage database schemas, orchestrate changes, and ensure consistency across all your environments. Let's dive into how Harness Database DevOps can streamline your database change management and enhance your overall deployment strategy.

Before you begin, review the following:

• All about Database DevOps

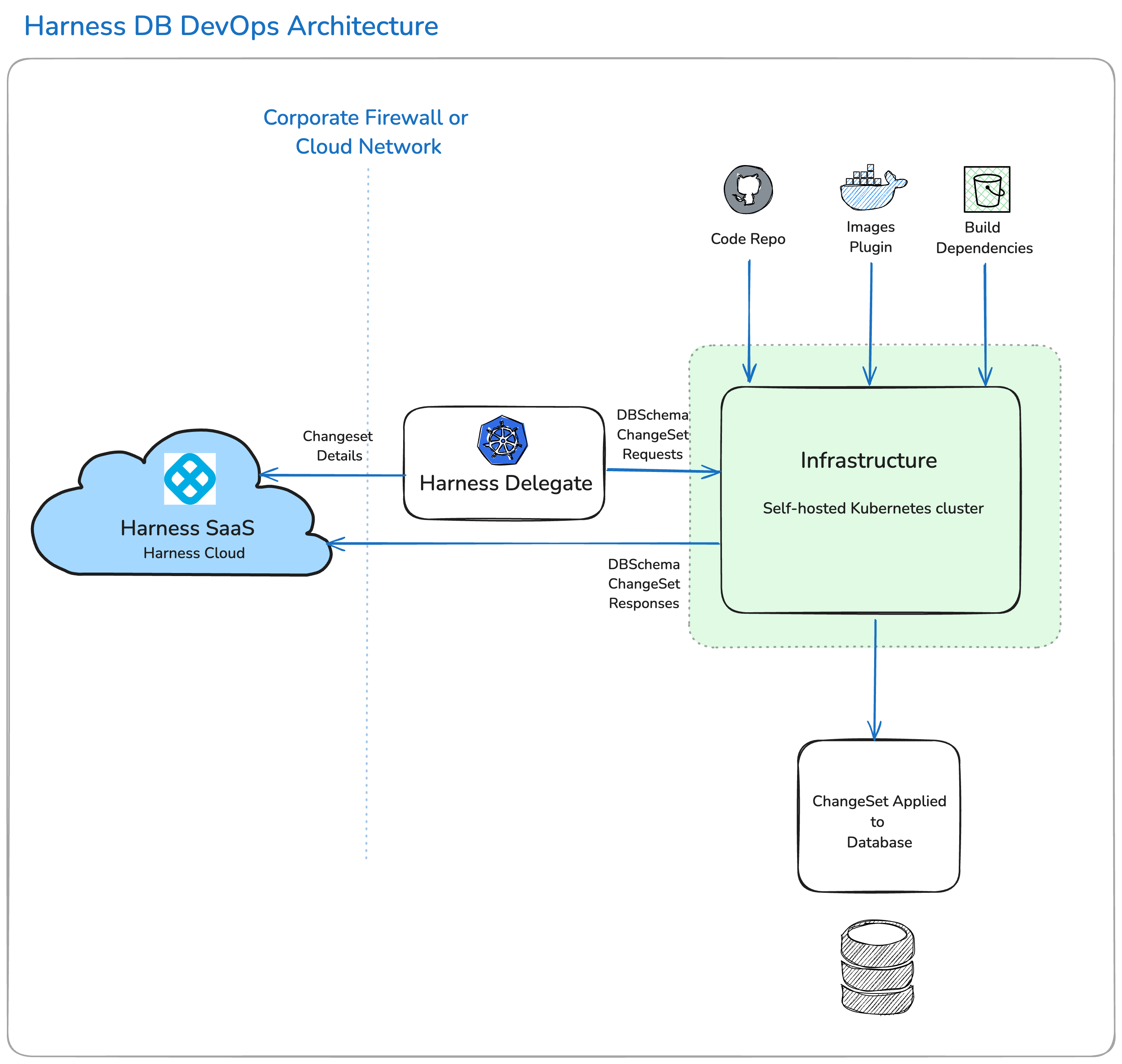

Harness DB DevOps Architecture

info

Before you can access Harness Database DevOps, you must have Harness enable the following feature flag, DBOPS_ENABLED. To enable the feature flag, please contact Harness Support.

The Harness delegate is crucial to Harness Database DevOps because it gives us access to your infrastructure on which we execute jobs that require database network connectivity. The Harness Delegate acts as an agent that facilitates the connection between the Harness CI/CD pipeline and the database. It enables the execution of database changes in a secure and efficient manner. The Delegate can be configured to connect to various database instances, ensuring that the right credentials and access parameters are used for each environment.

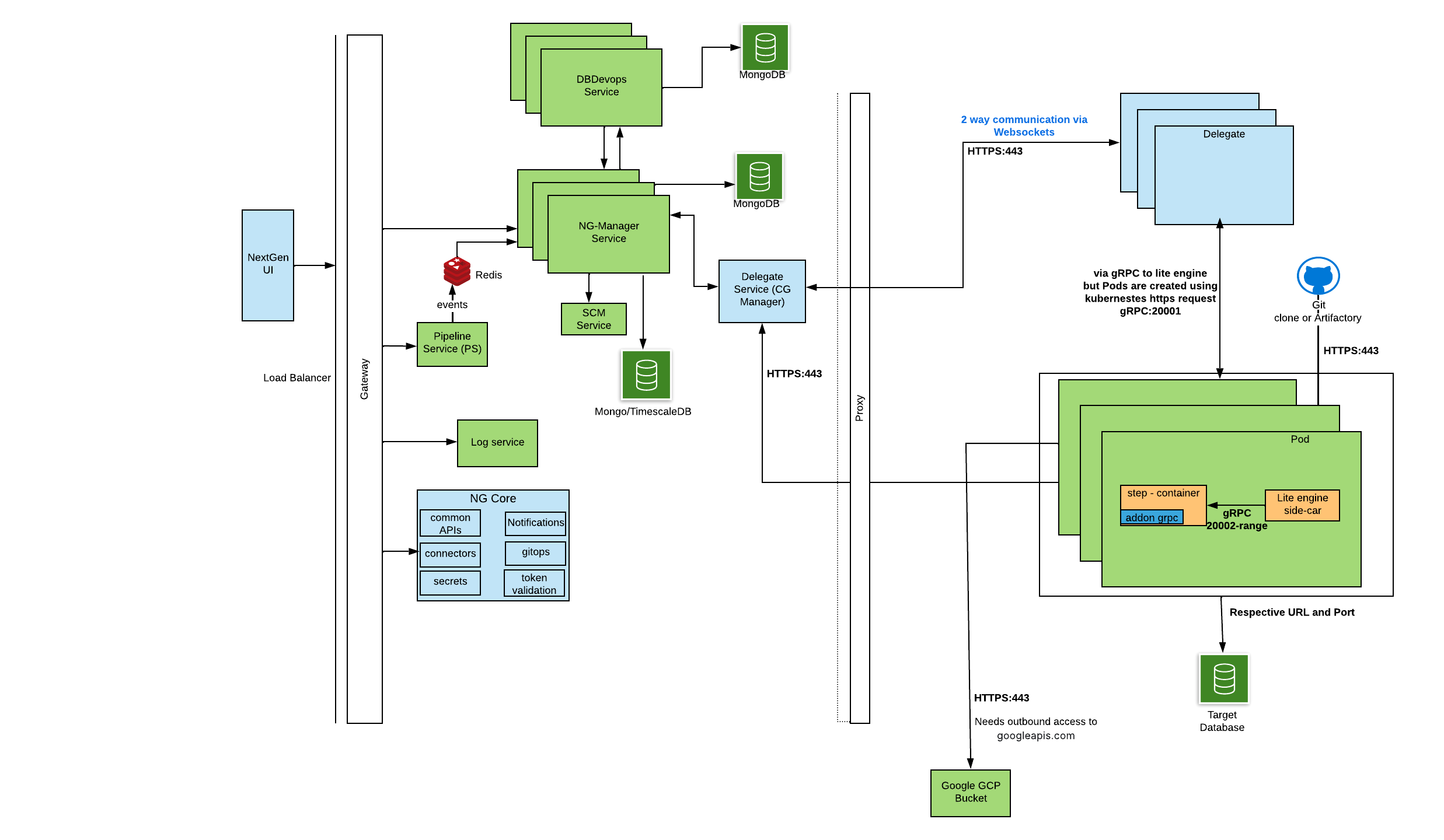

Communication Protocol between Services and Customer Infra

Key Notes

1. Outbound Control
   • All the communications shown in the diagram operate as part of a single execution flow.
   • It is not possible to selectively disable individual communications, as doing so would break the orchestration pipeline.
2. Delegate Communication
   • The Harness Delegate is the primary component responsible for initiating communication back to Harness SaaS.
   • For more details on how the Delegate functions, see the Delegate Overview.
3. Log Shipping
   • During task execution, outbound access to "googleapis.com" over port 443 is required to ship step logs.
   • This can be avoided by changing the account-level setting: Account Settings → Default Settings → Continuous Integration → Upload Logs via Harness. When enabled, logs are shipped directly to Harness SaaS, removing the dependency on googleapis.com.

Network Communication

Initiator	Protocol/Port	Destination	Harness URL / Endpoint
NextGen UI	HTTPS :443	Gateway	https://app.harness.io/gateway
Gateway	HTTPS :443	NG Core	https://app.harness.io/ng/api/*
Gateway	HTTPS :443	Log Service	https://app.harness.io/log-service/*
Gateway	HTTPS :443	Pipeline Service	https://app.harness.io/pipeline-service/*
Pipeline Service	HTTPS :443	NG Manager Service	https://app.harness.io/ng-manager/*
NG Manager	HTTPS :443	DB DevOps Service	https://app.harness.io/dbdevops/*
NG Manager	HTTPS :443	SCM Service	https://app.harness.io/scm/*
Delegate	WSS (WebSockets over HTTPS) :443	Delegate Service (CG Manager)	wss://app.harness.io/delegate-service/*
Delegate	gRPC :20001	Lite Engine	Internal (Pod)
Lite Engine	gRPC :20002-Range	Step Container (Pods)	Internal (Pod)
Step Container	DB Driver (Postgres :5432 / Mongo :27017 / MySQL :3306 / etc.)	Target Database	Customer DB
Delegate	HTTPS :443	Git / Artifact Repositories	External URLs
Delegate / Lite Engine	HTTPS :443	googleapis.com (Log Uploads)	External (unless disabled via account setting)

Understanding How Secret's Info is Sent to Build Pods

1. All secret requests are first sent as expressions from Harness to Delegates, where they are decrypted inside the Pod init request.
2. Decrypted secrets are added as Kubernetes Secrets in the same namespace where build pods are deployed.
3. Those secrets are referenced inside the Pod definition using imagePullSecrets.

info

Container registry credentials are stored as .dockercfg type secret in Kubernetes secret, allowing the Pod to pull images from the specified registry in the stepGroup.
